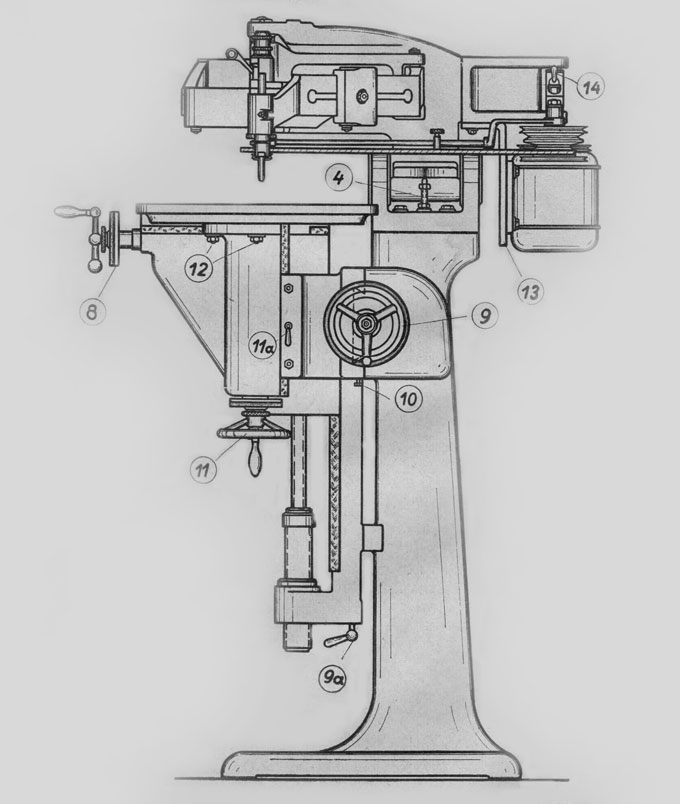

Deckel GK2 Pantograph

Click Here To View Larger Version

Deckel GK2 Pantograph
Working area	300 x 150 x 350 mm
Copy table	450 x 320 mm
Variable ratio	1:1,5 - 1:10

Spindle motor	0,4 kW
Spindle speed	750 - 9.500 rpm

Dimensions	1.200 x 1.000 x 1.600 mm
Weight	450 kg
GK 2 Engraver

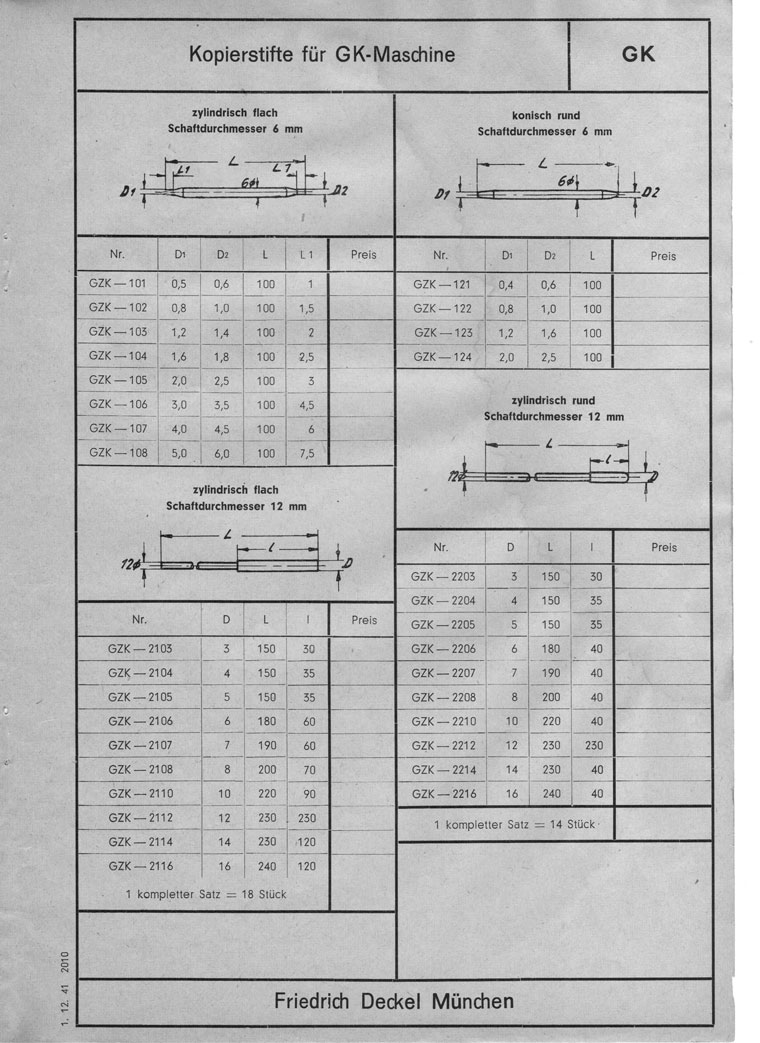

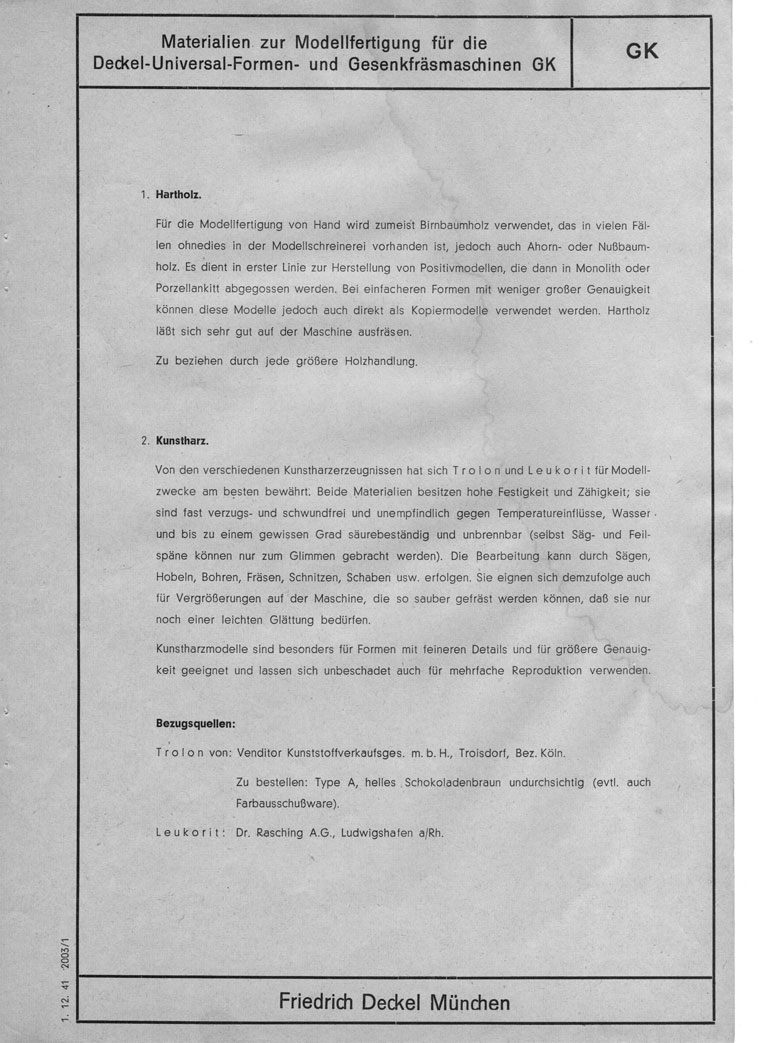

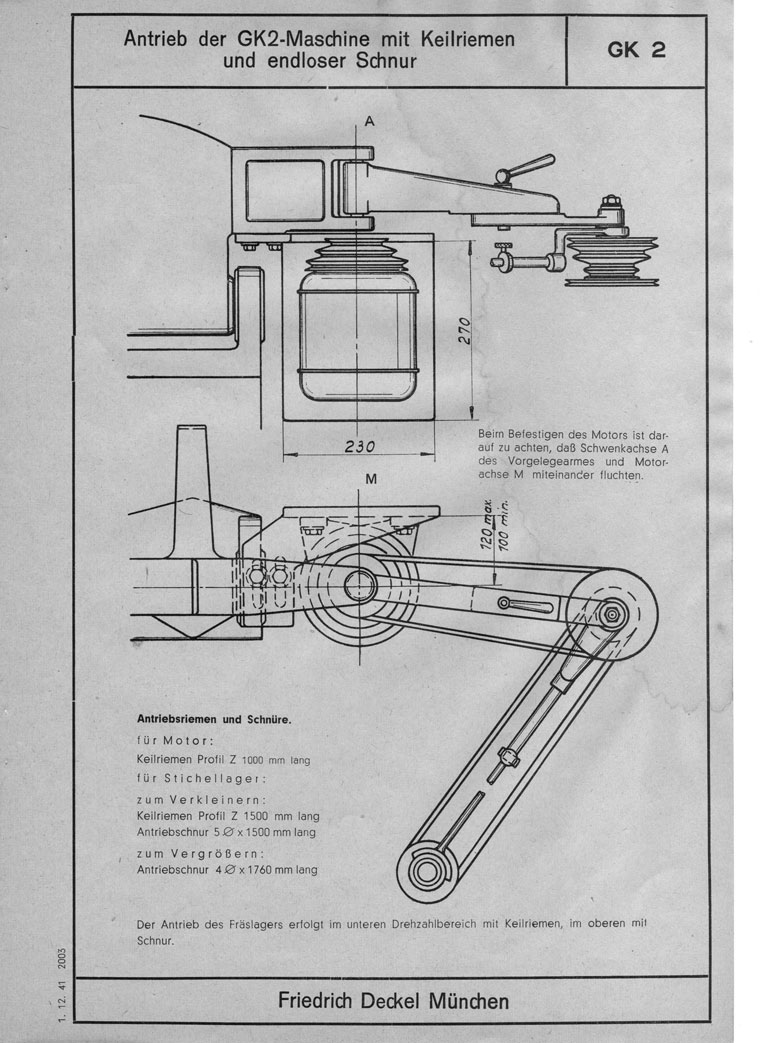

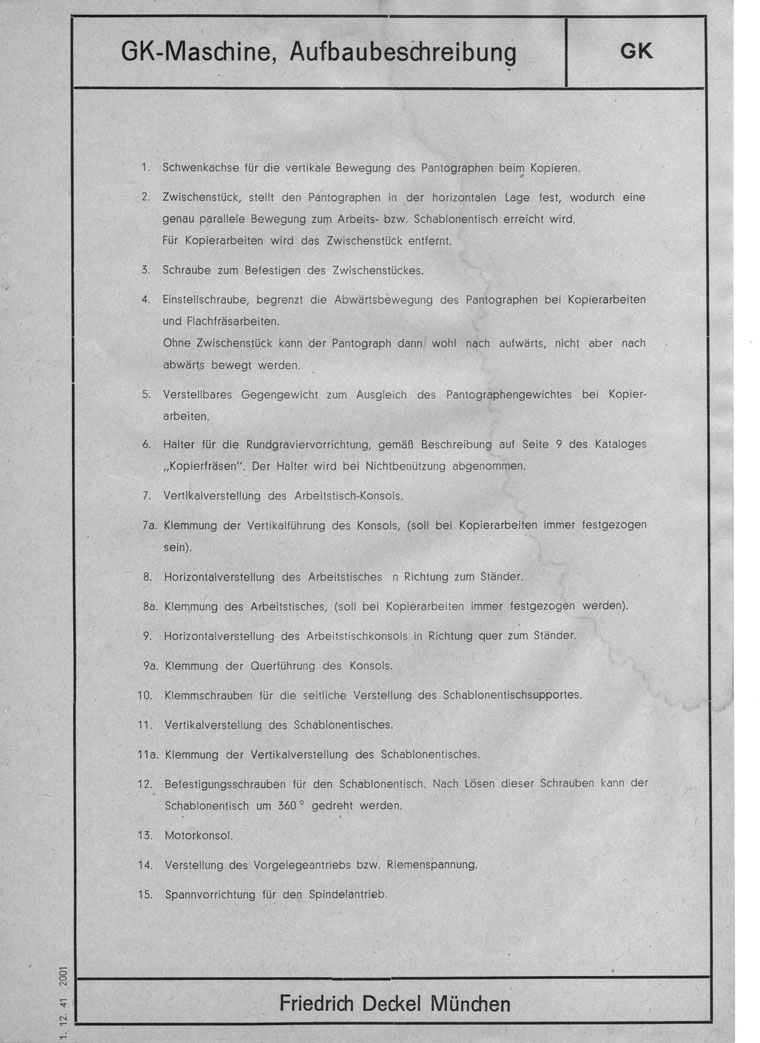

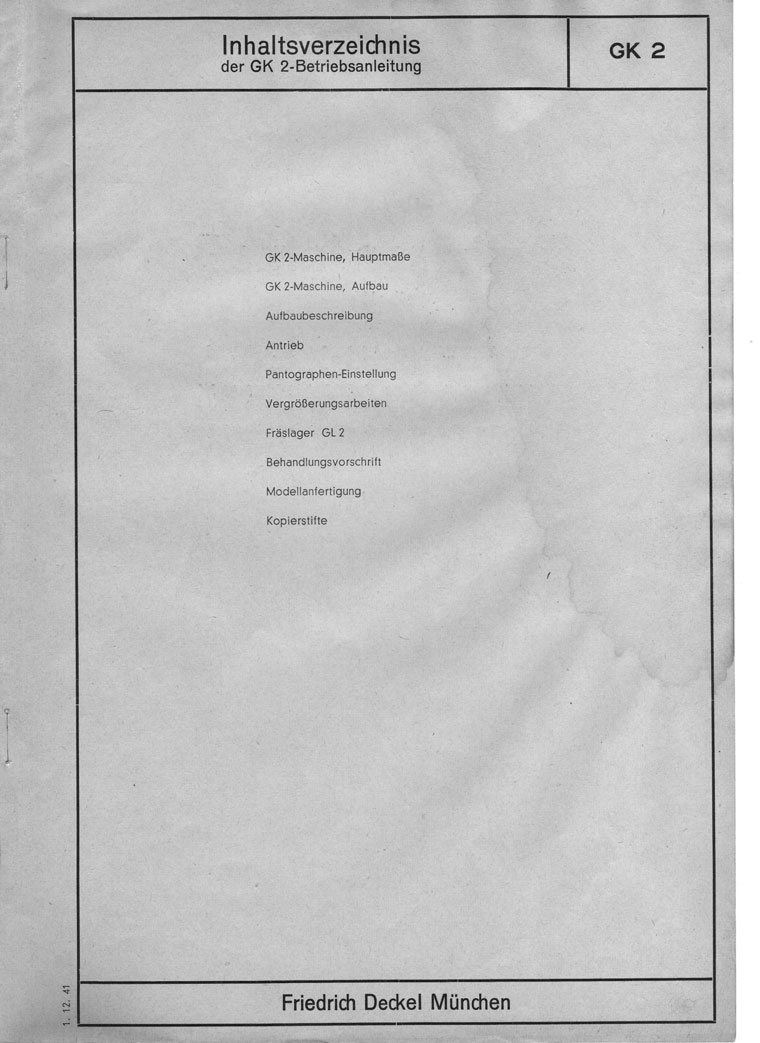

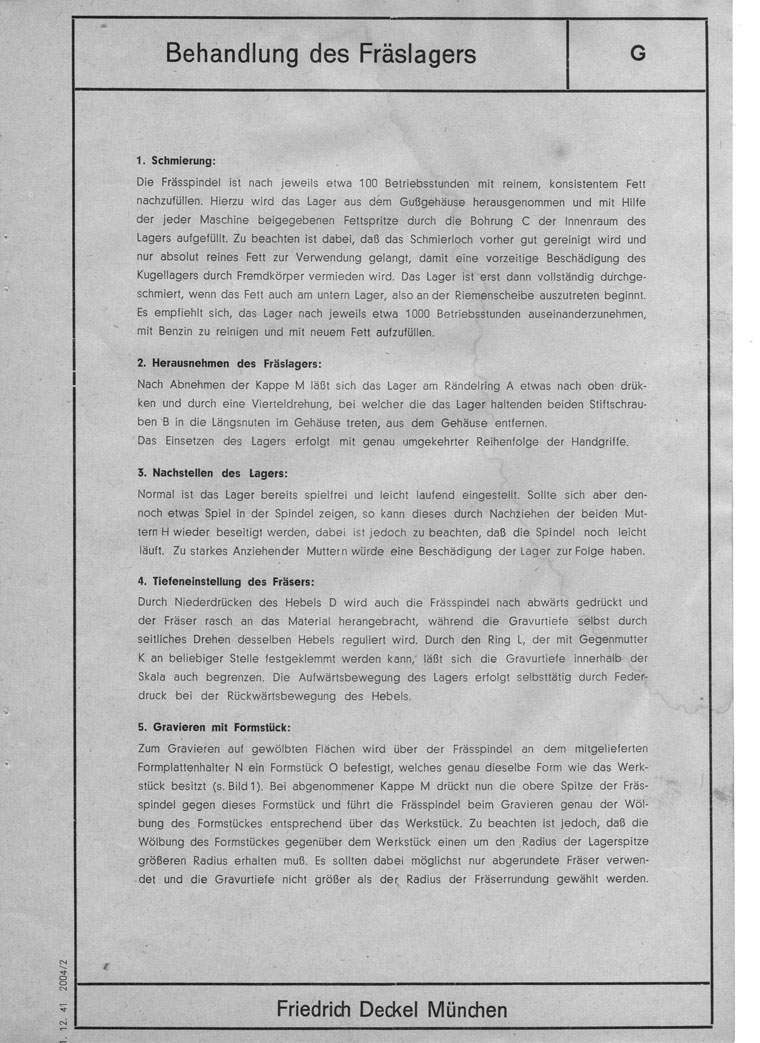

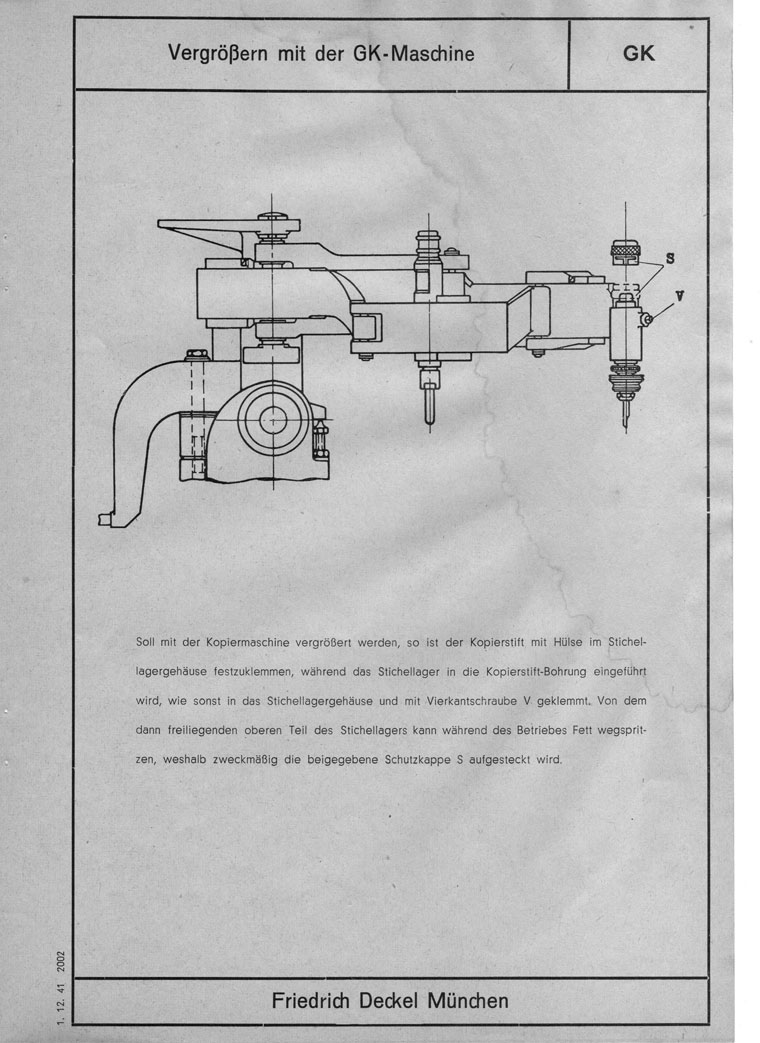

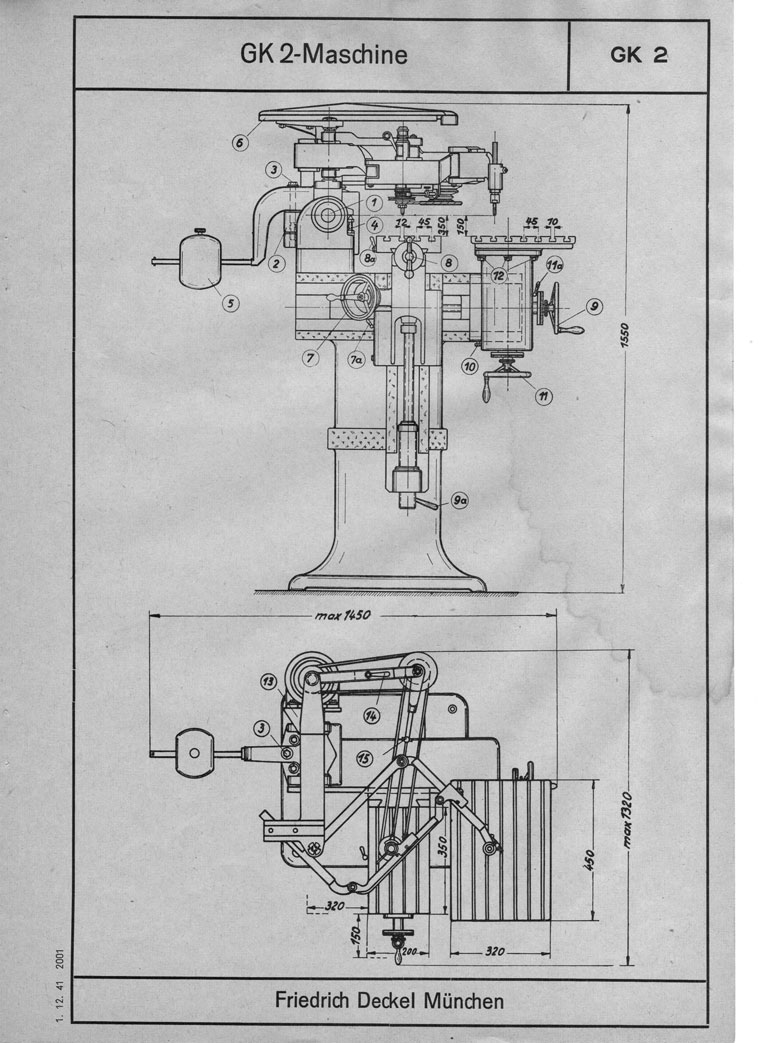

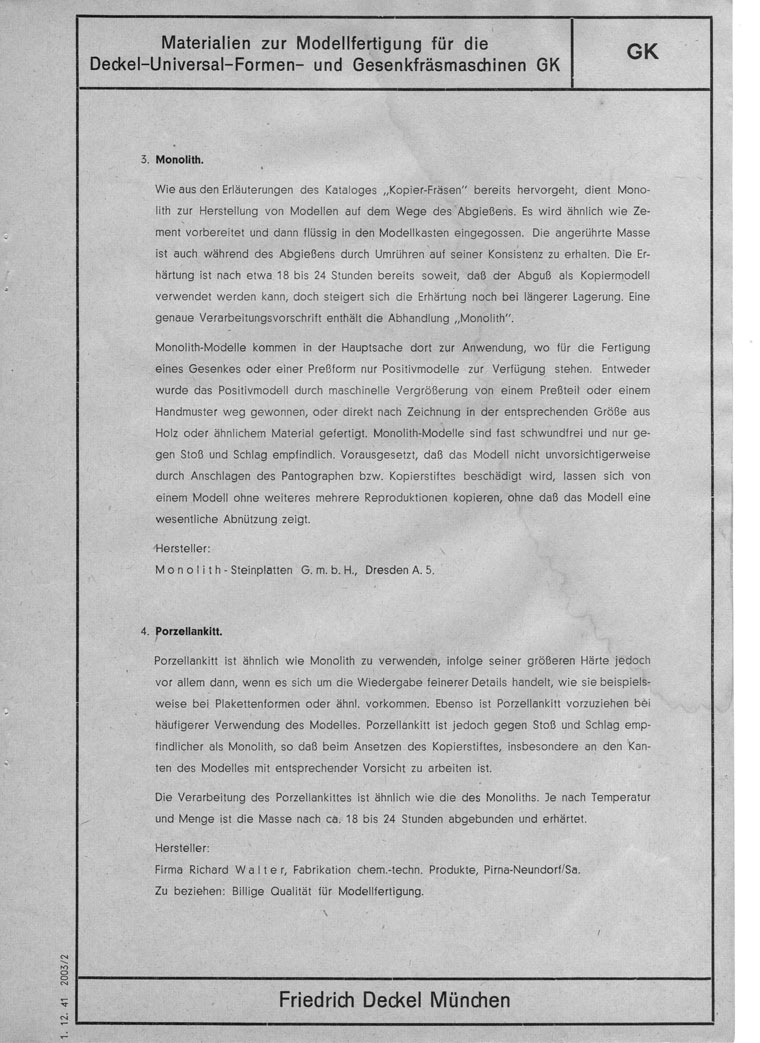

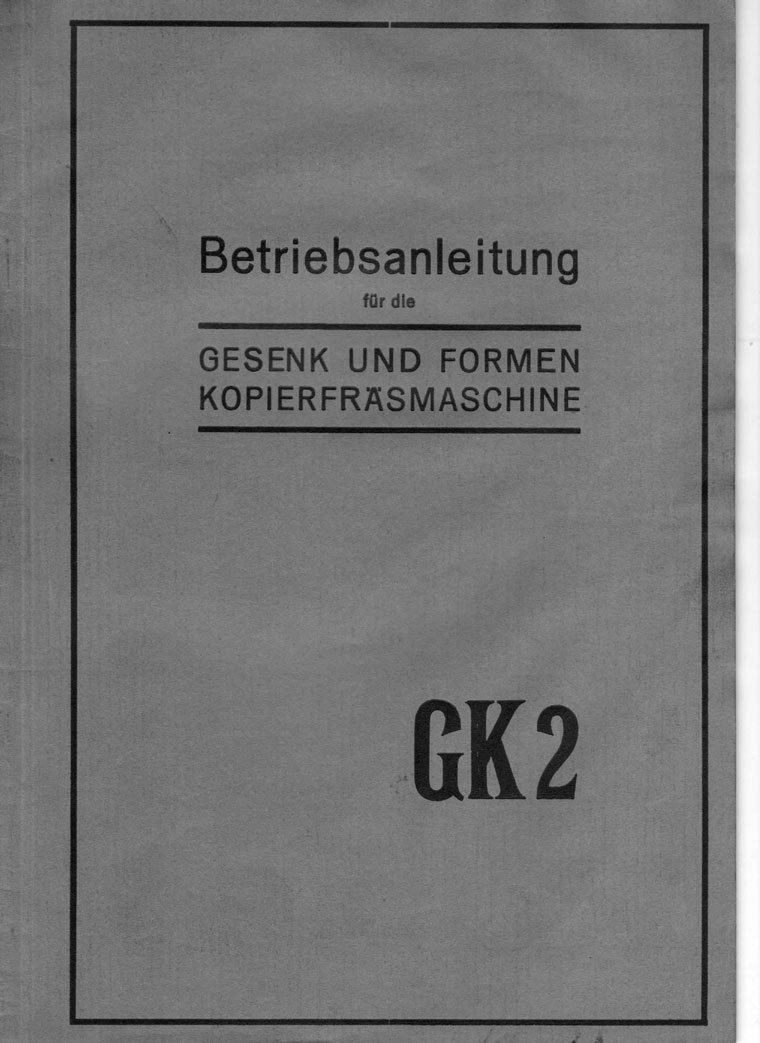

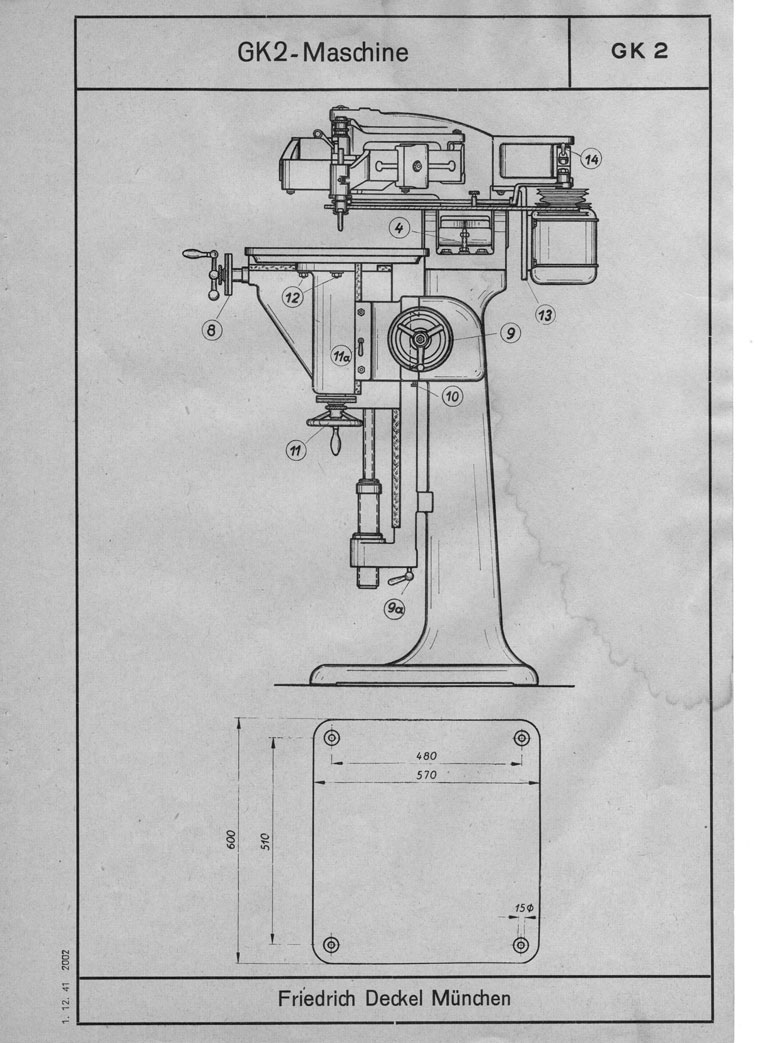

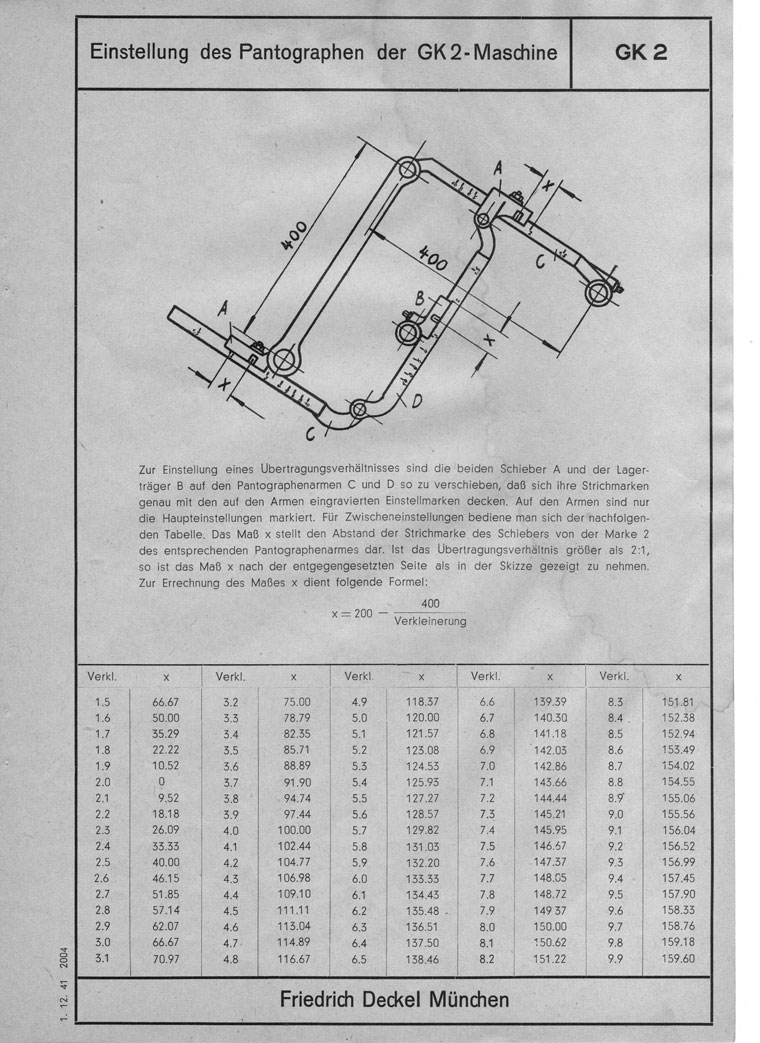

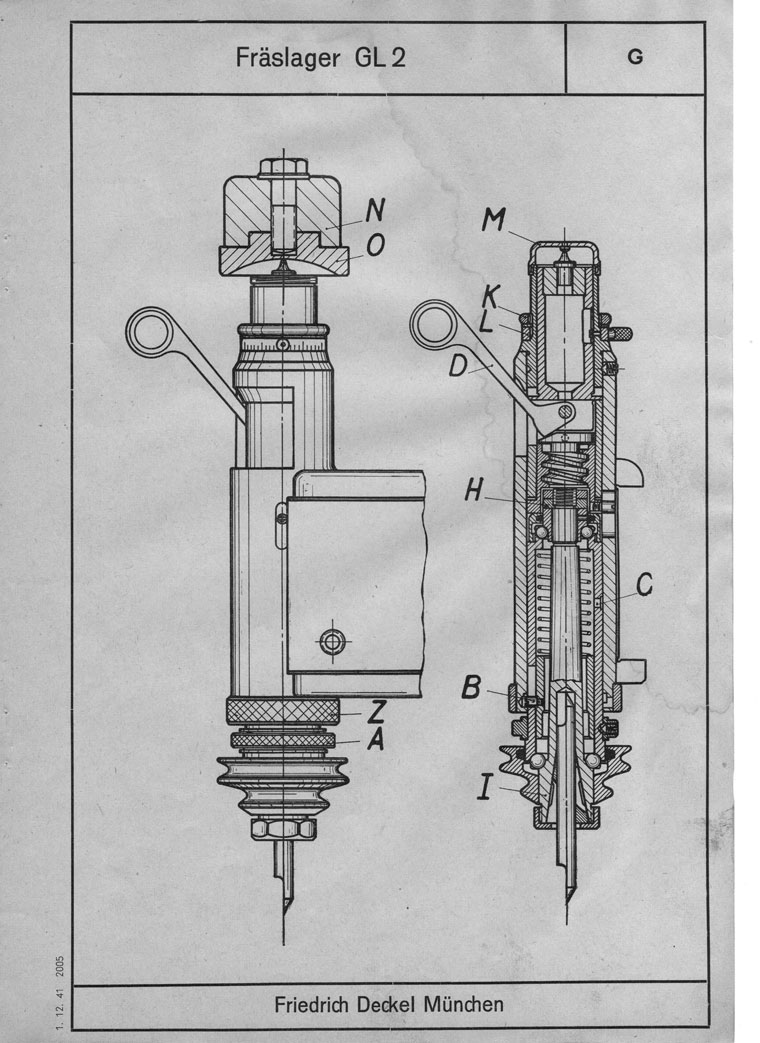

Deckel GK2 User Manual (cc 130kB page)
00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12

* * *
