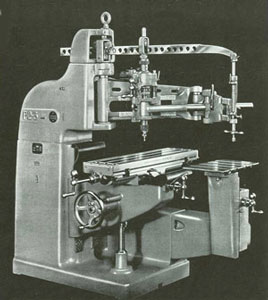

Gorton P2-3 Pantograph

Gorton P2-3 Pantograph (3D)
Working area	34" x 9"
Copy table	16" x 10 ½ "
Variable ratio	1:2 - 1:8

Spindle motor	½ HP
Spindle speed	1.300 - 13.000 rpm

Dimensions	54" x 73" x 71"
Weight	2.600 lbs
P2/3 Engraver
