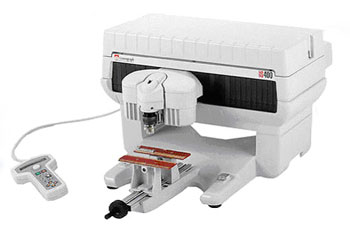

Gravograph IS400

Gravograph IS400 (496kb)

Gravograph IS400 Technical (26kb)

Gravograph APF for IS400 (1,2Mb)

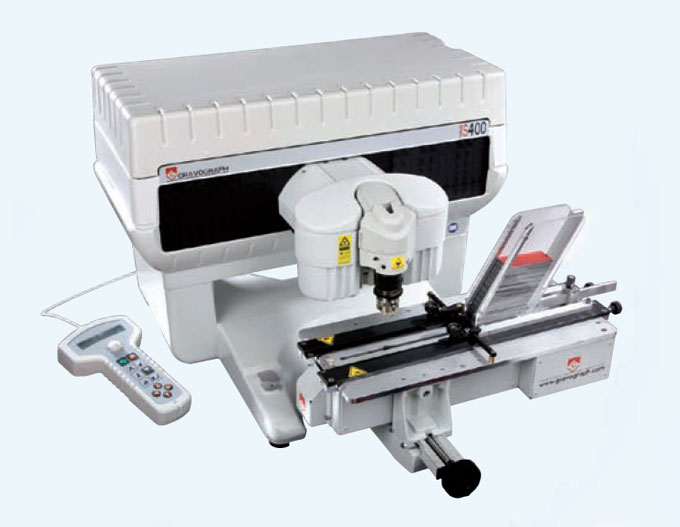

Automatic Plate Feeder
Accessory designed for use with the Gravograph M40 Deep Vice and IS400 rotary engravers to accommodate
high-volume plate or badge marking and engraving.

Braille Dispenser (236kb)
Auto - Raster™

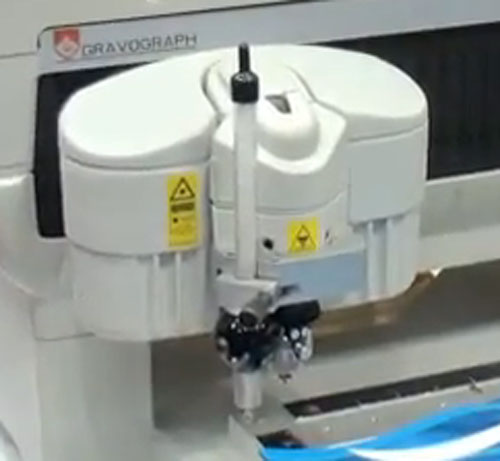

Braille Dispenser / Inserter

Gravograph IS400 Inside Ring Engraver (334kb)

* * *

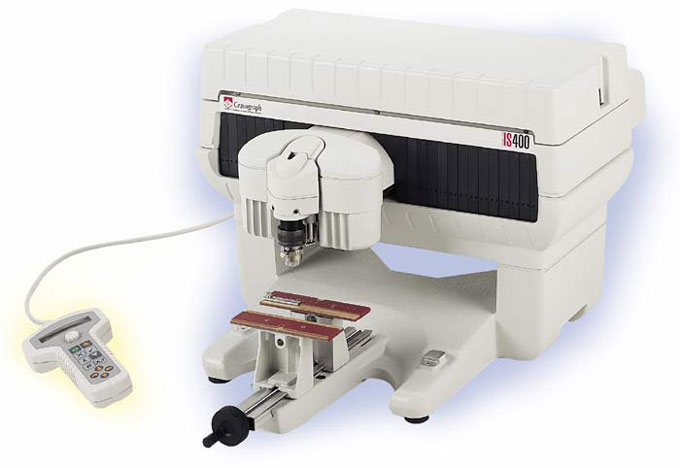

IS400 Engraving Machine – Factory discription

Gravograph's best selling engraving machine. Suitable for professional engravers or for industrial user. A flexible computerised engraving machine for trophies and plaques, small signage, identification of industrial parts and light machining. Also available in a Volume version for very large objects.

Compact & easy access - Users appreciate the minimum space required, plus the convenience of having a remote control, which lets you work on either side of the machine.

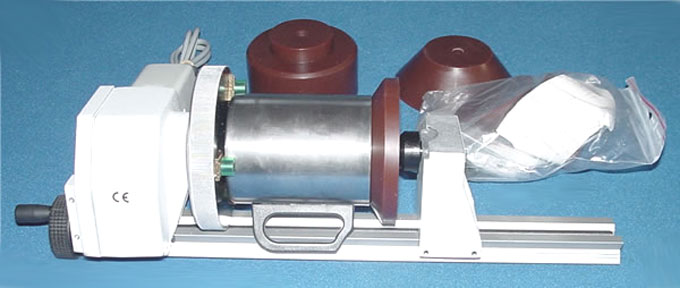

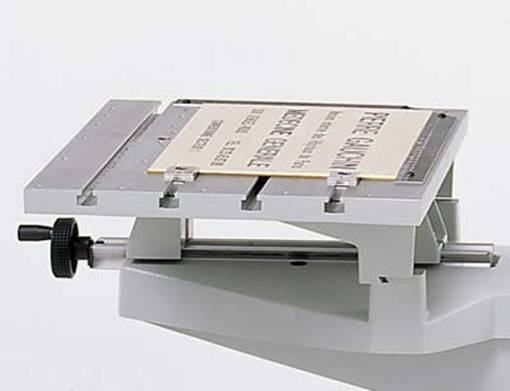

Versatile - All Gravograph jigs and holding devices can be used on the machine, plus accessories, including vacuum table and t-slot table to hold-down objects, cylindrical device to engrave cylindrical or conical items, chip collector to remove chips during engraving, making the IS400 a do-it-all machine. Gravograph engraving materials are the perfect compliment to this computerized engraving machine.
Practical - Vise is open to the engraving area, which gives the user the ability to set-up and engrave a wide range of objects. The holding vise is also self-centering, which allows for automatic plate positioning.
Flexible - Machine can be driven from any graphic / design software (but only GravoStyle enables 100% productivity combined with the IS400 computerized engraving machine).
Powerful & productive - Powerful spindle motor, ball bearing lead screws, heavy duty spindle. The IS400 computerized engraving machine can tackle metal work without a problem (engraving and cutting) – a table top work horse.
Large plate machine - Thanks to its completely open vise and the advanced software long plate management feature, the IS400 computerized engraving machine is truly capable of tackling long objects and signs.
Reliable - Combine Gravograph's manufacturing quality with low maintenance and ease of serviceability, and the IS400 becomes a reliable part of your business.
Grows with your business - You can upgrade your Gravograph IS400 computerized engraving machine to a Volume version as your business needs grow.


Inside Ring Engraver



Kit for the Gravograph IS400 machine Intended for high-production jewelry manufacturers. This wedding ring engraving kit is an optional extra only compatible with the IS400 engraver. It comprises of the following components: A special diamond spindle, allowing pressure setting for the tool. This spindle is mounted in place of the standard IS400 spindle.

A diamond tool (same as for the B model).

A cylinder-drive support, mounted in place of the vice, on the slide. This cylinder-drive support includes a mechanical stop to set the Y ref.

An IS400 cylinder-drive without the standard chuck.

An accurate 6 jaw chuck, for a perfect concentric tightening on the wedding ring and a quick positioning. Maximum ring size (outside diameter): 2.36 in (60 mm).

6 jigs (B model type), to be fitted on this chuck.
