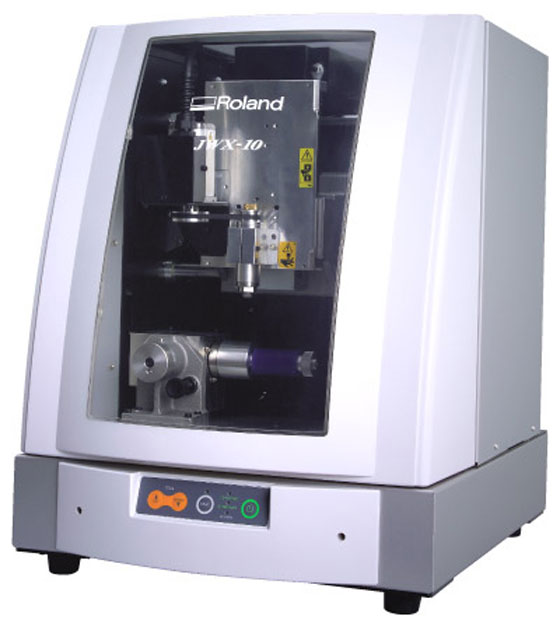

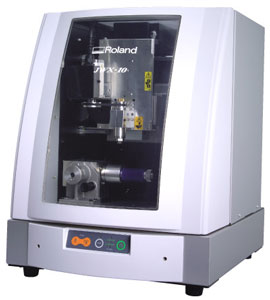

Roland JEWELA JWX-10

Click Here To View Larger Version


Roland JEWELA JWX-10

Working area

140 x 105 mm

Z stroke

105 mm



Spindle motor

DC - 100 W

Spindle speed

4.500 - 10.000 rpm



Dimensions

440mm x 517mm x 554mm

Weight

40 kg

JWX10 Engraver

Roland Jewela JWX-10 (110KB)

Roland JWX-10 Users Manual (784KB)

* * *

Roland JWX-10
Milling Machine – Factory discription
List Price: $9,995 (US Dollars)

- Jewelry-specific, 4-axis mill
- Unattended jewelry model making
- Professional CAM software included
- Compact, fully-enclosed device

SUMMARY
Mill wax models using any jewelry CAD software
4-axis milling for intricate jewelry designs
Professional CAM software included
Compact, fully enclosed device
High-speed 20,000 rpm spindle
Fine precision 0.002mm/step
Maximum work area: 14cm (W) x 10.5cm (D)

1. High-Speed Production
Powered by a high-speed 20,000 rpm spindle, the JWX-10 offers the high-speed production that jewelry makers need to take their business to the next level. It quickly mills out models for rings, bracelets and charms in a fraction of the time it takes to produce them by hand. Typical wax jewelry models are milled in just a few hours.

2. Breathtaking Quality
The JWX-10 turns even the most intricate CAD designs into reality. With detailed resolutions up to 0.002mm/step, this beautifully designed 4-axis mill captures every subtle nuance of your designs. Its exacting precision produces superior custom jewelry that will delight your customers and keep them coming back for more.

3. Easy To Use
Jewelry makers with existing CAD files can use the JWX-10 to mill their designs within an hour after opening the box. Needless to say, this desktop device is incredibly easy to use. The JWX-10 comes with holding fixtures that secure non-proprietary, off-the-shelf jewelry wax stock during the milling process. It also includes 4-axis CAM software, user manuals, tools, wax and comprehensive tutorials.

4. Compact & Fully Enclosed
The JWX-10 is a compact and fully enclosed desktop mill. It runs quietly and fits easily in any office or jewelry shop. At the same time, its work area (5-1/2” x 4-1/8”) is large enough to accommodate any ring, bracelet or charm.

5. Bundled CAM Software
Roland MODELA Player 4 comes bundled with every JWX-10. This powerful and easy-to-use CAM software supports continuous 4th axis milling for producing a silky-smooth surface finish. The software accepts IGES, DXF and STL files exported from all popular Jewelry CAD software applications, including Gemvision Matrix, Artcam Jewelsmith, Type3 3Design, JewelCAD, JewelSpace and Rhino Techgems.

6. ProtoWizard software and fixture bundle
Roland’s optional ProtoWizard software and fixture bundle takes jewelry making to an even higher level. ProtoWizard lets jewelers import industry standard STL files and easily converts them into NC files ready to be milled. The software is compatible with all jewelry design software, including GEMvision Matrix, Rhino® with Techgems, ArtCAM Jewelsmith and Type3 3Design. The included 3-sided ring fixture and ring arbor allow for the production of even the most complex designs.

7. Reliable Performer
Roland's international ISO certification is your quality assurance. Like all Roland products, the JWX-10 was designed and manufactured at a state-of-the-art, ISO-certified facility. Roland builds all products at its advanced Digital Factory one at a time by a single assembler - just like a Rolls Royce. Attention to detail is given the highest priority.
