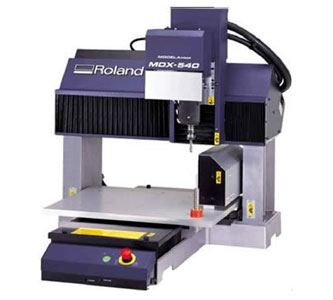

Roland MDX-540A - ModelaPro II
|
Roland MDX-540A - ModelaProII |
|
Working area |
400 x 400 mm |
Z stroke |
155 mm |
Spindle motor |
DC brushless motor 400W |
Spindle speed |
400 - 12.000 rpm |
Dimensions |
745 x 955 x 858 mm |
Weight |
109 kg |
MDX540 A Engraver |
Roland MDX-540; 540A; 540S; 540SA (528MB)
* * *
MDX-540 Milling Machine – Factory discription
List Price:
MDX-540: $19,995 (US Dollars)
MDX-540A: $29,995 (US Dollars)
MDX-540S: $24,995 (US Dollars)
MDX-540SA: $34,995 (US Dollars)
-SRP® Technology
-Fast, accurate prototyping
-Wide variety of materials
-Smooth surface finish
Anyway you look at it – the MDX-540 SRP® System is a winner. It’s one of the fastest and most accurate RP systems on the market. And its price tag is less than half most additive systems. The desktop device comes complete with powerful CAM software, making it easy to quickly produce everything from functional and snap-fit prototypes to light metal molds and custom jewelry.
SUMMARY
- Creates the most accurate prototypes for complex snap-fits
- Creates prototypes for functional testing and proves part manufacturability
- Handles a wide variety of materials and generates a smooth surface finish
- 400W DC Brushless motor with increased torque for fast, accurate prototypes
- Bundled, user-friendly CAM Software
- Handheld controller and virtual control panel make set up fast and easy
- Specialty MDX-540S and MDX-540SA models available for enhanced precision and repeat accuracy
- Optional 4th rotary axis and automatic tool changer
- Maximum 19.68" x 15.74" x 6.10" XYZ-Axis Travel
