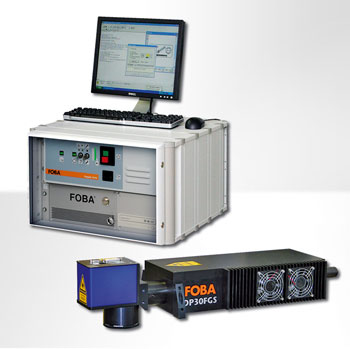

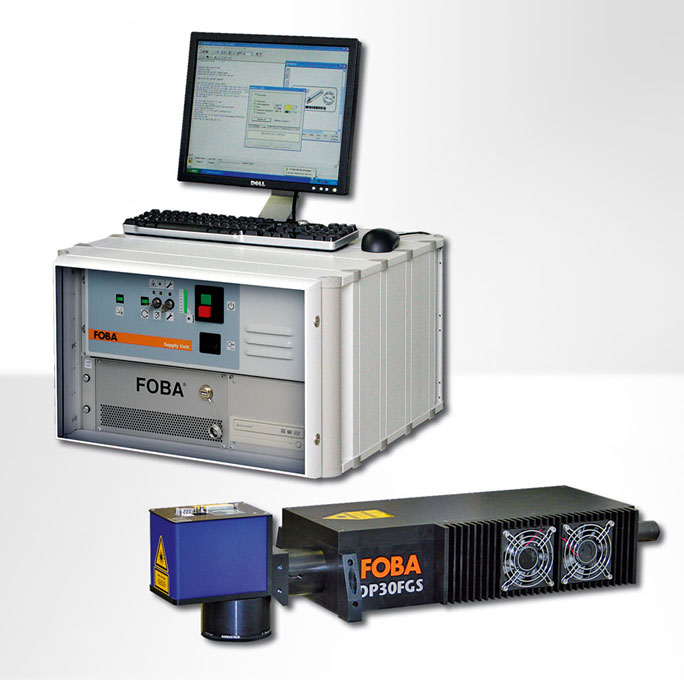

Foba DP30FGS - Fiber Pulsed laser


Foba DP30FGS - Fiber Pulsed laser

Laser type

Pulsed Ytterbium (Yb) fiber laser, Wavelength 1,060 – 1,070 nm

Output power

30 W



Working area

70 x 70mm to 185 x 185mm

Engraving speed

Up to 5.000 mm/s



Dimensions

95 x 133 x 571 mm

Weight

Head 13 kg, Control unit 45 kg

Foba DP30FGS - Fiber Pulsed laser

 FOBA DP30FGS has been especially designed for security-relevant marking applications in the ID and personalization sectors. The 30 watt grayscale fiber laser marks ID cards, chip (smart cards) cards and bank cards as well as IDs, driving licenses and passports in a tamper-proof and precise manner.

The DP30FGS applies premium-quality, high-resolution markings of all required contents: owner-related data, (passport) photographs, graphics, logos, 2D codes, Multiple Laser Images (MLI), Changeable Laser Images (CLI) and tactile markings. This enables sensitive documents to fulfill the strict requirements laid down in global security standards and protects them against misuse and falsification.

Alltec DP30FGS (908kb)

* * *
