Foba M-3000 - Marking Laser

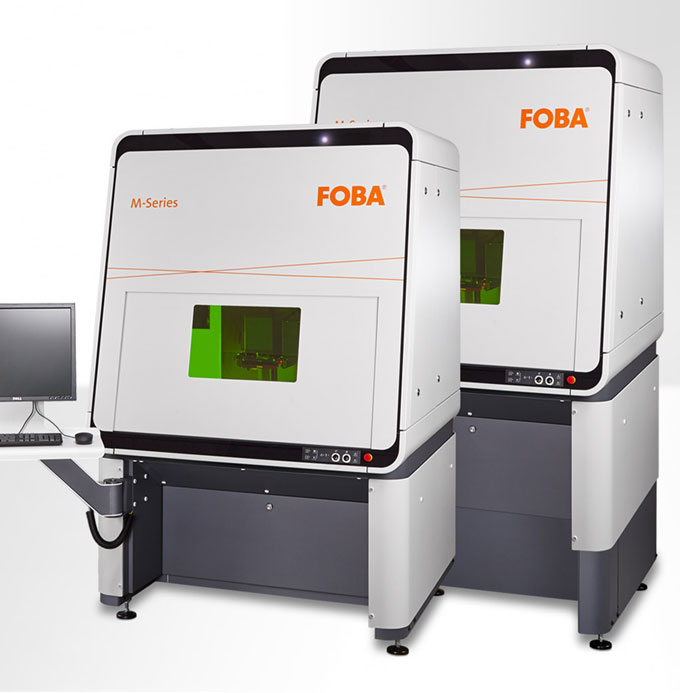

The M-Series represents FOBA's next-generation of laser marking machines. The M-Series laser workstations process small, large and geometrically complex work pieces as well as batches and small series precisely and efficiently. The M-Series is available in two housing sizes (M2000 and M3000), and three models for each size (B: with work table, R: with rotary table, P: with X/Y/Z axis).

The M3000-B laser marking machine is equipped with a programmable Z-axis, a work table and an electric lift door. The all-purpose laser workstation is particularly useful when it comes to the marking of large single parts in many sectors, including the automobile industry, the construction of metals, tools and machines, the medical field and plastic-processing industries.

The M3000-R automatic rotary table workstation is equipped with a motor-adjustable Z-axis and a 2-station rotary table. It is ideally suited for the production of serial parts found in day/night design elements, metal components, tools or medical products.

The M3000-P laser workstation is equipped with three progrannable axes (X, Y, Z; can be expanded to 5 axes) and an electric lift door. The laser workstation is ideally suited for the processing of batches and small parts in pallets and trays; the M3000-P has also been designed to mark larger components for which the marking positions have to be traveled at, or where marks have to be applied at several positions

Technical specification

M-Series at a glance
Two housing sizes
Two housing sizes	for processing small (M2000) and larger (M3000) components
Three models	with work table (M2000-B, M3000-B)  with 2-station rotary table (M2000-R, M3000-R)  with three axes (X/Y/Z) (M2000-P, M3000-P)
M3000 – technical data for all models
Laser types for integration	Various, e.g. fiber laser markers (Y.0100-fc, Y.0200-fc, Y.0300-fc, Y.0301-f, Y.0500-fc, Y.0100, Y.0200, Y.0300, Y.0301, Y.0500) and the V.0020-uv UV laser marker
User interfaces	Laser marking software FOBA MarkUS™
Protection classes	Laser class 1 (as per DIN EN 60825-1), supply room IP4x
Supply	Depends on the workspace and laser system  Electrical requirements: 1/N/PE, AC 110/230 V, 50/60 Hz  Power consumption: depends on the integrated laser system, < 2 kW  Temperature: 15 – 35°C (also up to 40°C depending on the laser system) Humidity: 10 – 90 %, non-condensing
Options	Exhaust systems  Vision systems  Other axes on request  Rotation axis  Rotation/swiveling unit
M3000-B
Economic universal marking machine for reliable single parts production
Features	Work table (1.000 x 375 mm), electric lift door, programmable Z-axis
Axes	Programmable Z-axis, travel: 500 mm, travel speed: 15 mm/s
Dimensions (W x D x H, mm)	1,200 x 1,200 x (1,800-2,100)*
Footprint (m²)	1.44
Weight (kg)	approx. 750**
Max. work piece weight (kg)	100
Max. work piece size (W x T x H, mm)	1,200 x 400 x 500
M3000-R
Automated rotary table machine for more throughput
Features	Motorized rotary table (ø 950 mm, 2 stations), turning bulkhead wall, programmable Z-axis
Axes	Programmable Z-axis, travel: 500 mm, travel speed: 15 mm/s
Dimensions (W x D x H, mm)	1,200 x 1,490 x (1,800-2,100)*
Footprint (m²)	1.79
Weight (kg)	approx. 850**
Max. work piece weight (kg)	2 x 16
Max. work piece size (W x D x H, mm)	H=200 mm, W x D according to 1/2 of ø 950 mm
M3000-P
Highly stable laser marking machine for precise single part and series production
Features	X and Y-axis (300 x 300 mm), Z-axis (500 mm), electric lift door
Axes	Programmable Z-axis  Travel: 500 mm, travel speed: 15 mm/s  Programmable X and Y-axis  Travel: 300 mm each, travel speed: je 15 mm/s
Dimensions (W x D x H, mm)	1,200 x 1,200 x (1,800-2,100)*
Footprint (m²)	1.44
Weight (kg)	approx. 800**
Max. work piece weight (kg)	40
Max. work piece size (W x D x H, mm)	300 x 300 x 300
