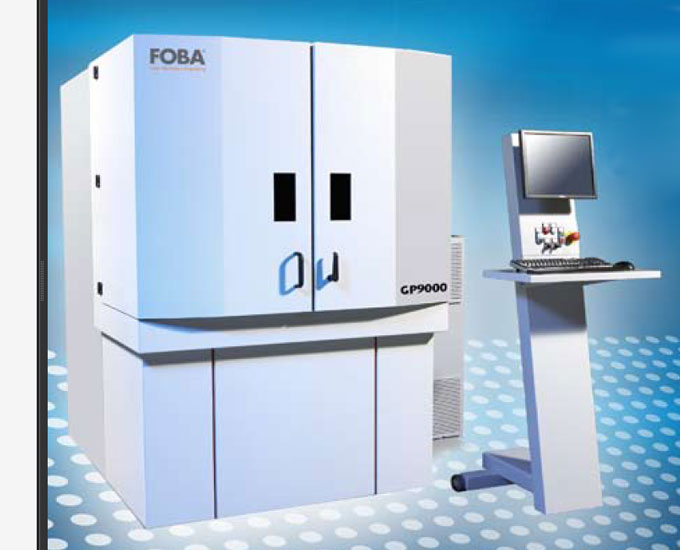

Foba G9000 - Engraving Laser


Foba G9000 Engraving Laser

Laser type

Laser 1064 nm
Continuous wave operation (CW)
Pulsed operation 0.5 - 65 kHz

Output power

Up to 100 Watt



Working area

120x120 mm
x y z axis 500x500x500 mm

Engraving speed

-



Dimensions

2.030 x 2.000 x 2.300 mm

Weight

max. 2500 kg

Foba G9000 Engraving Laser Machines

Percise, variable, robust and with range of option, the new GP9000 sets the standards for the future.

Equipped with specific front modules, this machine meets the many requirements made of loading, access and automation integration. A thermically and machani-cally highly-robust machine bed is the result of joint development work carried out with leading Swiss universities.

Advantages

- Engraving 2D/3D structures, contours and surfaces.

- Laser systems with spot size of 0,015 - 0,1 mm.

- For workpieces up to 400 kg.

FOBA GP9000 (504kb)

* * *
