ALLTEC LC500 - CO2 Laser Marking


ALLTEC LC500 - CO2 Laser

Laser type

Sealed-off CO2

Output power

50 W



Working area

84.4 x 87.3 mm, Standard

Engraving speed

Up to 2,000 characters/s, 15m/s



Dimensions

350 x 1165 x 522mm

Weight

135 kg

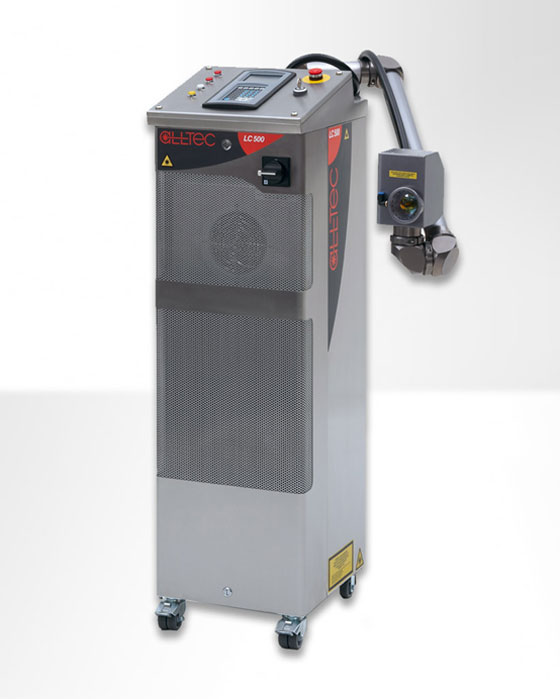

Foba LC500 CO2 Laser Marking System

Using a CO2 laser with a 50-watt output, the LC500 produces excellent markings in moderate production lines as well as harsh, high-speed ones. The LC500 rapidly applies various types of data on various kinds of materials and components (expiration/manufacturing data, batch/line numbers, ID matrix codes and barcodes, graphics, customized data) with a high degree of quality and in a reliable manner. From packaging made from paper, cardboard and collapsible boxes to labels; from containers made of plastic and glass to PET containers; from electronic components and components used in the automobile industry to extruded work pieces such as pieces of rubber, pipes, profiles or door and window seals.

Thanks to the IP65 one-box concept, the movable beam turining arm and the compact marking head, which makes it possible to apply marks along any direction, LC500 simply, flexible and quickly integrates into normal, and in particular, narrow and harsh production lines.

Alltec LC500 (1.48Mb)

* * *

All data on e-engraving.com is listed without any favoring. We supply links
to manufacturers websites where all information can be confirmed.
We are not responsible in case any information is invalid or missing.
